Introduction

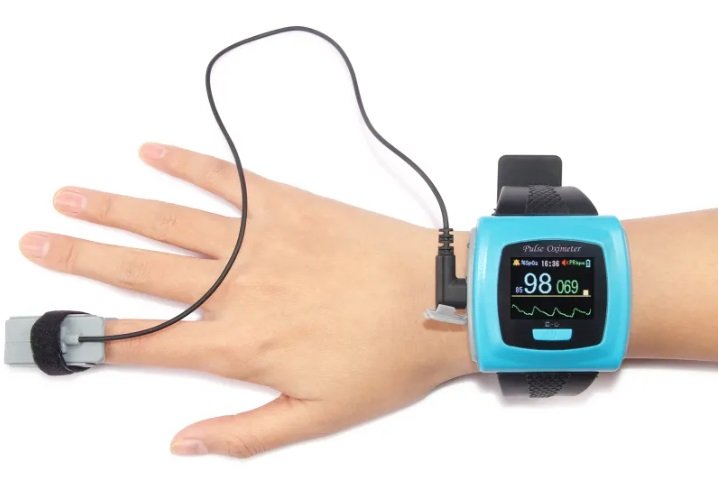

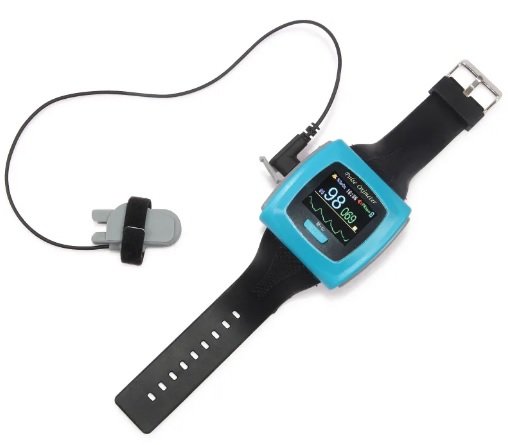

The CMS50F Pulse Oximeter utilizes advanced Photoelectric Oxyhemoglobin Detection combined with Capacity Pulse Scanning and Recording technology to measure blood oxygen levels and pulse rate through the fingertip. Ideal for home use, hospitals, oxygen bars, and community healthcare settings, this device is also suitable for monitoring during physical care or sports recovery. It can be used before or after exercise but is not recommended for use while actively exercising for accurate readings.
Functions:
1)Display of SpO2 value.
2)Display of pulse rate and bar graph.
3)Display of pulse waveform.
4)Low-voltage indication: the low power indication symbol appears when the voltage is too low to work.
5)Adjustable screen brightness.
6)PR sound indication.
7)Sound prompt function: over-limit prompt of measured value, probe-off or finger-out prompt, low power prompt.
8)Data memory function.
9)The data can be uploaded to the terminal equipment in wired mode.
10)The data can be uploaded to the terminal equipment (Bluetooth wired equipment) in wireless mode.
11)Clock function.
12)Charging function.
Performance:
SpO2 measurement range: 0 % ~ 100 % (resolution: 1 %)
Accuracy: 70 % ~ 100 %, ± 2 %;
0 %~69 %, unspecified
PR measurement range: 30 bpm ~ 250 bpm (resolution: 1 bpm)
Accuracy: ± 2 bpm or ± 2 %, whichever is greater
Accuracy under low perfusion: low perfusion 0.4%, SpO2 accuracy: ± 4 %; PR accuracy: ± 2 bpm or ± 2 %, whichever is greater.
Light interference: compared to the values measured in normal conditions and ambient light conditions, the deviation is less than ± 1 %.
Power consumption: ≤ 100 mA
Working voltage: DC 3.6 V ~ 4.2 V
Battery: one 3.7 V rechargeable lithium battery
Battery lifetime: ≥ 500 times (charge and discharge times)
Safety class: internally powered equipment, type BF applied part

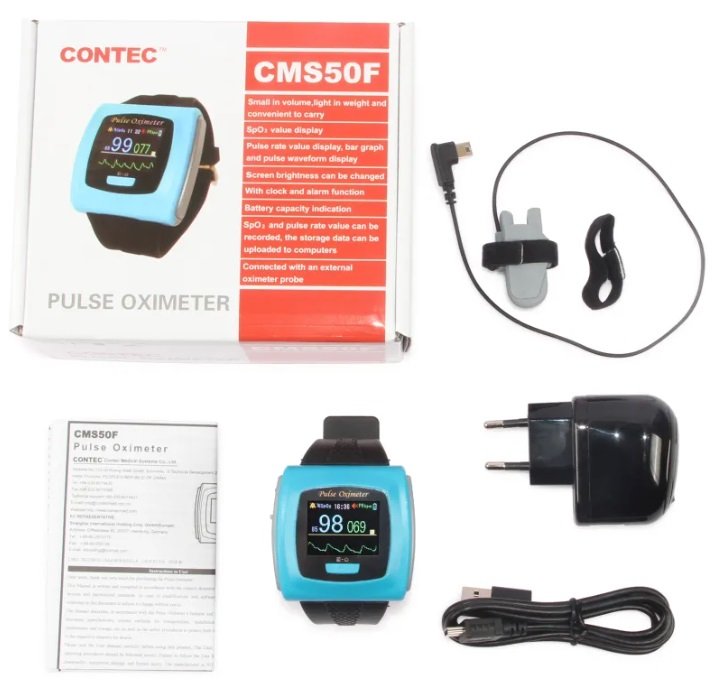

Accessories:
One SpO2 probe
One USB data line
One User Manual
One power adapter
Physical characteristics:
Dimension: 61 mm (L) × 56 mm (W) × 24 mm (H)
Weight: about 60 g (including one lithium battery)
Certification:
CE, FDA.
